Silicon Info: Feedstock (Polycrystalline Si)

Silicon is the second most abundant element in the crust of the Earth (28%), but it does not occur as a native element because SiO2 in the form of quartz, quartzite, and other compounds is more stable.  Many processing steps (below) are conducted to bring Si from its native ore, quartzite, to the crystalline substrates we use for solar cell fabrication or integrated circuit (IC) components.  The starting silicon for both PV and IC applications is 99% pure metallurgical-grade (MG) Si obtained via the carbon reduction of Si02 in an arc furnace.  Although the overall reaction can be considered to be

SiO2 + C  -> CO2 + Si

there are a complex series of reactions that take place in different temperature regions of the arc furnace, with liquid Si finally forming from SiC. The Si liquid is periodically tapped from the furnace and typically allowed to solidify in shallow molds about 1.5 x 1 m in size.  The major impurities are Fe, Al, and C.  This MG Si material is inexpensive (~$1/kg), but the residual impurities degrade carrier lifetime to unacceptably low values. Some, like B, P, and Al, electronically dope it too heavily for use in PV devices.  B is particularly bothersome because it neither segregates nor evaporates significantly during melt processing.  P segregates only slightly better than B.

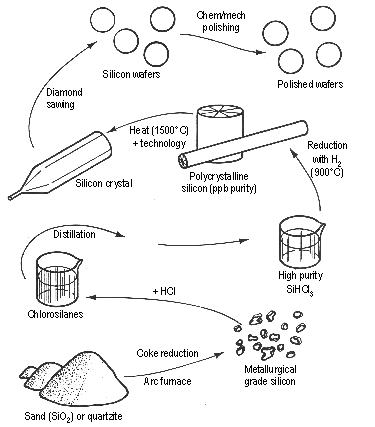

Sand to Silicon

Schematic of a Silicon Arc Furnace

View of  1-Meter-Diameter Electrodes in Quartzite/Coke

Chlorosilane purification and deposition steps (used by the IC industry) increase the purity to more than adequate levels for PV use (99.999999%), but they also increase the cost to unacceptable levels for PV manufacturers.  The current price of polysilicon from the chlorosilane IC process is about $50/kg, while PV users have a target price of about $20.  So, the Si PV industry has been using reject material from IC polysilicon and single-crystal production - material that is too impure for IC use but adequate for PV use.  The IC industry now consumes about 20,000 metric tons of Si annually, and the PV industry uses about 3,000 metric tons.  But as production techniques improve and the Si PV industry grows at a faster rate than the IC industry, the supply of reject material is becoming insufficient.  This means that new sources of polysilicon will be needed (Mauk et al., 1997; Mitchell, 1998).  Demand first exceeded the supply of reject Si in 1996.  The subsequent downturn in the IC industry temporarily relieved the PV feedstock shortage, but projections by one of the large polysilicon manufacturers indicate that the PV demand for reject Si will exceed the supply (8,000 metric tons/yr) by a factor of 2 to 4 by the year 2010 (Maurits, 1998).  This does not represent a fundamental material shortage problem, because the technology, quartzite, and coke needed to make feedstock are in abundant supply.  The issue is to supply feedstock with necessary but only sufficient purity (~99.999%) at an acceptable cost.

The trichlorosilane (SiHCl3) distillation method is used to purify Si for more than 95% of polysilicon production (even if converted to other chlorosilanes or silane for reduction), but the process is very energy intensive.  It produces large amounts of waste, including much of the starting silicon and a mix of environmentally damaging chlorinated compounds.  In addition, the feedstock produced by reduction following this distillation method exceeds the purity requirements of the PV industry, which are estimated to be as follows:

  • Electrical dopant impurities, iron, and titanium, each <~0.1 ppma (they will be reduced further in the crystal-growth process by impurity segregation)

  • Oxygen and carbon concentrations below the saturation limits in the Si melt (i.e., no SiC- or SiO2-precipitate formation)

  • Total other non-dopant impurities <~1 ppma.

Fresh approaches are needed to originate novel separation technologies that can extract B, Al, P, transition metal impurities, and other impurities from MG silicon, to meet the purity requirements listed above - but in a simpler process.  Examples of new approaches that are in early stages of investigation are: (i) the use of electron-beam and plasma treatments with several DS steps to remove impurities from MG Si (Nakamura et al., 1998); (ii) directly purifying granular MG Si using repeated porous-silicon etching, subsequent annealing, and surface impurity removal (Menna et al., 1998); (iii) a method that uses MG Si and absolute alcohol as the starting materials (Tsuo et al., 1998); (iv) vacuum and gaseous treatments of MG Si melts coupled with directional solidification (Khattak et al., 1999) guided by thermochemical calculations (Gee et al., 1998); and (v) the use of impurity partitioning when silicon is recrystallized from MG Si/metal eutectic systems (Wang and Ciszek, 1997). Approaches like these or other yet-to-be-determined innovative methods could have a major impact on the continued success and growth of the Si PV industry - especially if one is discovered that is intrinsically simpler than current technology yet yields adequate Si purity.
_____________________________

Gee, J.M., Ho, P., Van Den Avyle, J., and Stepanek, J. (1998) in: Proceedings of the 8th NREL Workshop on Crystalline Silicon Solar Cell Materials and Processes, Ed: B.L. Sopori (August 1998 NREL/CP-520-25232), 192.
Khattak, C.P., Joyce, D.B., and Schmid, F. (1999) in: Proceedings of the 9th NREL Workshop on Crystalline Silicon Solar Cell Materials and Processes, Ed: B.L. Sopori (August 1999 NREL/BK-520-26941), 2.
Mauk, M.G., Sims, P.E., and Hall, R.B. (1997) American Institute of Physics Conf. Proc. 404, 21.

Maurits, J. (1998) in: Proceedings of the 8th NREL Workshop on Crystalline Silicon Solar Cell Materials and
Processes,
Ed: B.L. Sopori (August 1998 NREL/CP-520-25232), 10.
Mitchell, K.M., (1998) American Institute of Physics Conf. Proc. 462, 362.
Menna, P., Tsuo, Y.S., Al-Jassim, M.M., Asher, S.E., Matson, R., and Ciszek, T.F. (1998) Proc. 2nd World Conf. on PV Solar Energy Conversion, 1232.

Nakamura, N., Abe, M., Hanazawa, K., Baba, H., Yuge, N., and Kato, Y. (1998) Proc. 2nd World Conf. on PV Solar Energy Conversion, 1193.
Tsuo, Y.S., Gee, J.M., Menna, P., Strebkov, D.S., Pinov, A., and V. Zadde (1998) Proc. 2nd World Conf. on PV Solar Energy Conversion, 1199.
Wang, T.H., and Ciszek, T.F. (1997) J. Crystal Growth 174, 176.
